Echophone EC-1 by Hallicrafters


Echophone EC-1 - Radio's serial number - 224836

AC/DC 115-125 Volts
3 Bands, Tunes 550 kc. To 30 mc.
6 Tubes (12K8, 12SQ7, 12SQ7
12J5GT, 35L6GT and 35Z5GT)




ECHOPHONE RADIO CO.
201 EAST 26TH ST.
CHICAGO

A Division of Hallicrafters
2611 Indiana Avenue
Chicago, Illinois
Founder: William J. Halligan

My Echophone Project...

Echophone before refurbishing...

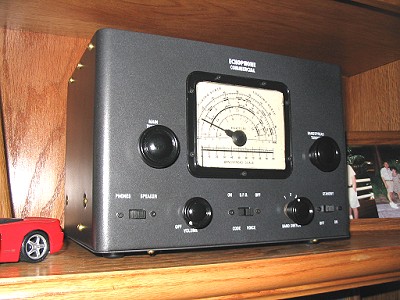

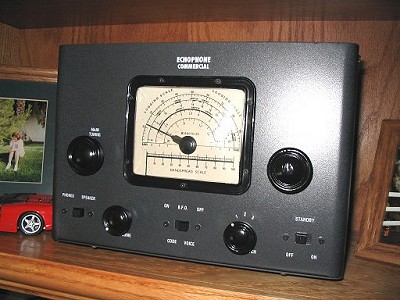

Completed receiver...

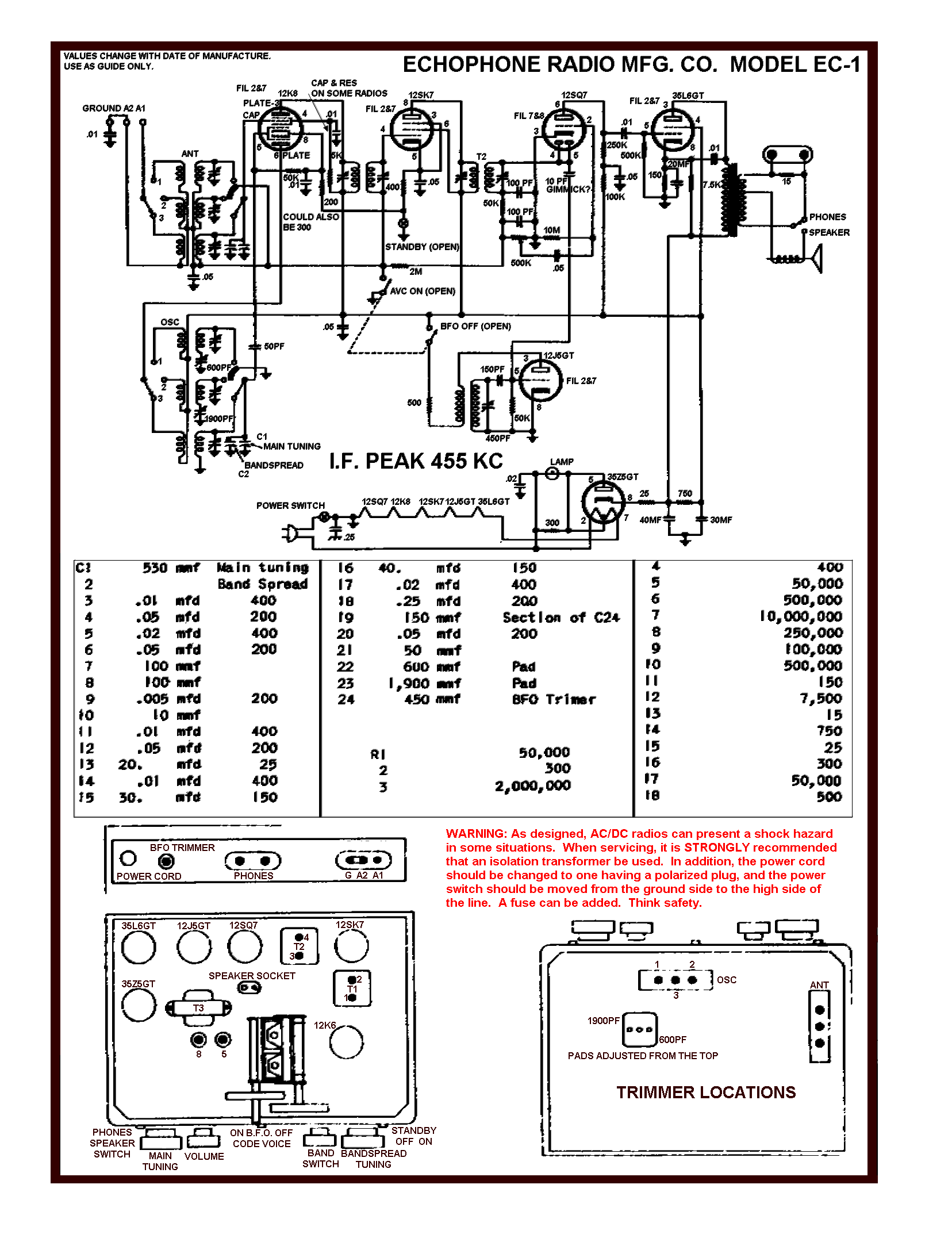

The schematic can be downloaded here.

Rear view before and after...
